High Capacity And Low Energy Consumption Ultrafine Powder Grinding Mill/ Steam Jet Mill

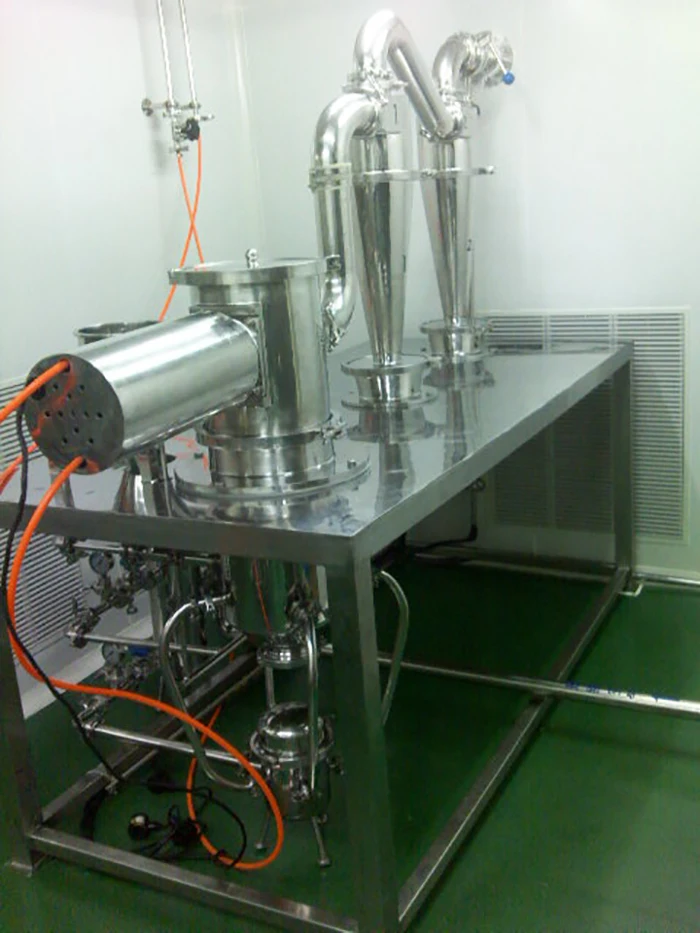

Jet mill consisting of fluidized bed opposed jet mill with integrated turbo jet mill with intergrated turbo
classifier for various powder processing aplications with best top cut and steep particle size distribution,
MQL series classifier rotor is vertically installed.MQW series classifier rotor is horizontally installed.
Better in the control of oversize particles.
Technical parameter
| Model | MQW03 | MQW06 | MQW10 | MQW20 | MQW40 | MQW60 | MQW120 | MQW160 |
| Feed Size | <3 | <3 | <3 | <3 | <3 | <3 | <3 | <3 |
| mm |
| Product Fineness | 2 - 45 | 2 - 45 | 2 - 45 | 3 - 45 | 3 - 45 | 3 - 45 | 3 - 45 | 3 - 45 |
| d97:um |
| Output | 2 - 30 | 30 - 200 | 50 - 500 | 100 - 1000 | 200 - 2500 | 500 - 3500 | 800 - 7500 | 1000 - 10000 |
| kg/h |
| Air Consumption | 3 | 6 | 10 | 20 | 40 | 60 | 120 | 160 |
| m3/min |
| Air Pressure | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 | 0.6 - 0.85 |
| Mpa |
| Installation Power | 21.8 | 42.5 | 85 | 147 | 282 | 415 | 800 | 1100 |
| KW |
Note: data of production capacity and product fineness in this sheet are just for your reference.
Different materials have different characteristics, and then one model of jet mill will give different
production performance for different material.Please contact us for tailored technical proposal
or trials with your material.
Project Service
-
- Feasibility and concept study
- Cost and Profitability calculations
- Timescale and resource planning
- Turnkey solution, plant upgrade and modernization solutions
-
- Knowledgable engineers
- Using the latest technologies
- Exploiting the knowledge gained from hundreds of applications across any industries
- Leverage expertise from our experienced engineers and partners
- Plant design
- Process monitoring, control and automation
- Software development and real time application programming
- Engineering
- Machinery manufacturing
- Project planning
- Construction site supervision and management
- Installation and testing of instrumentation and control systems
- Machinery and plant commissioning
- Employee training
- Support throughout production
What EPIC does?
| Technology | Hosokawa Alpine technology and Omya technology |
| Experts/Consultant | Mr.H.Horlamus-former engineer-Hosokawa Alpine |
| Experts/Consultant | Mr.Victor Evele- fromer engineer-Omya |
| Experience | over 20 years |
| Application | Minerals, Chemicals, New Materials,Pharmaceutical Materials, Food/Health Care Products, Recycled Materials, |
| Supply | consultancy,testing ,project design,machines, commissioning and training service. |
Machine Supplier
| Fludized Bed Jet Mill | Turbo Classifier |
| Spiral Jet Mill | Multi-Wheel Classifier |
| Air Classifier Mill | Dynamic Classifier |
| Impact Mill | Jet Classifier |
| Vibration Mill | Particle Surface Coating Machines |
| Ball Mill | Particle Shape Modification System |
| Grinding System | Waste PCB Recycling System |
| Wet Stir Mill System | Waste Tire Recycling System |
1) What are our main products?
- We design and manufacture various powder grinding mills, classifiers, coating machines,
mixing machines, etc.
2) What service do we supply?
- We offer consultancy for project feasibility assessment, process flow definition,
preliminary layout and factory building plan, project budget, project time schedule,
etc.
- We supply sample processing tests in our test station where are equipped with our
various machine products, to help clients compare performances of different types
of machines or process.
- We supply project engineering, automation engineering and civil engineering.
- We send engineers to the clients’ project site and offer on-site technical instruction and
supervision during the machine installation, commissioning and test run.
3) How long time is our delivery?
- 60 to 90 days after the down payment received.
4) What payment terms do we offer?
- 30% by T/T as down payment;
- 70% by T/T before shipment or irrevocable L/C at sight.
5) What kind of shipment can we do?
- For complete machines, standard containers or frame containers by sea.
- For spare parts, wooden Case and pallet for delivery by air.
6) What service can we supply for machine installation and test run?
- We send engineers to the clients’ project site and offer on-site technical
instruction and supervision during the machine installation, commissioning
and test run.
7) What is our warranty policy?
- We offer warranty of 12 months after installation or 18 months after the delivery.
- We offer lifetime service for our machine products after the delivery, and will
follow up the machine status with our clients after the successful machine
installation in our clients’ factories.
Kindly remindr,the price vary for different feeding material and fineness a little.
For details,please contact our project consultants, thank you.
